Berm Controller Settings

Berm Irrigation System - Manors at Central Park
 Last Updated: May 22, 2012
Zone   Programmed information   Water Supply Controller Description of zone

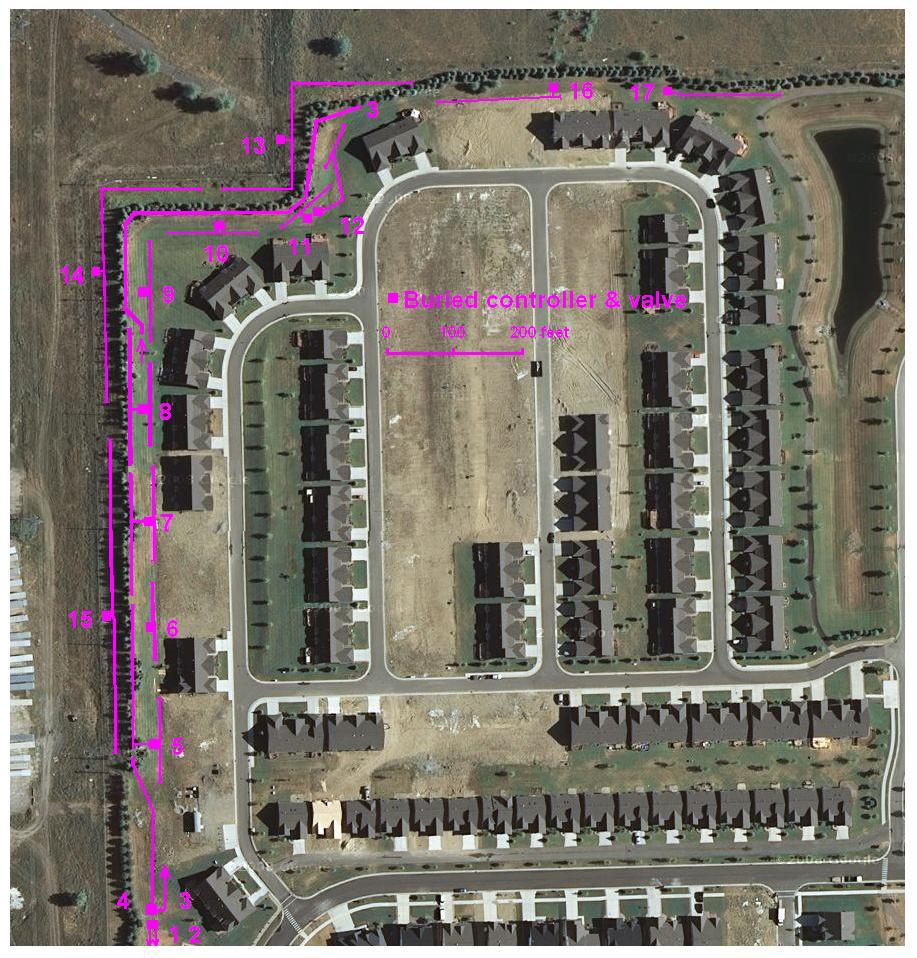

Number      Start Time Run Time      End Time Shut-off & Valve See the schematic image below and also at
  1 2 (Minutes) 1 2 Location Location http://grobbel.org/condo/controller_locations_on_berm.jpg
1           Well Top of Berm behind 49847 Lex. W approx. (26) rotors at base of berm behind 49233-49499 WCP
2           Well Top of Berm behind 49847 Lex. W approx. (23) rotors at base of berm behind 49499 WCP to 49847 Lex.W
3           Well Top of Berm behind 49847 Lex. W (18) rotors at top of berm behind 50103 Lex. W to 6645 Lex. N
4           Well Top of Berm behind 49847 Lex. W (5) rotors at base of berm behind 49847 to 49879 Lex. W
5           Well Frt of Berm behind 49895 Lex. W (7) rotors at top & (4) at base of berm behind 49895-49911 Lex. W
6           Well Frt of Berm behind 49959 Lex. W (4) rotors at base of berm behind 49927-49975 Lex. W
7           Well Frt of Berm behind 50023 Lex. W (7) rotors at top & (4) at base of berm behind 49991-50039 Lex. W
8           Well Frt of Berm behind 50071 Lex. W (7) rotors at top & (4) at base of berm behind 50055-50087 Lex. W
9           Well Frt of Berm behind 50103 Lex. W (4) rotors at base of berm behind 50103 Lex. W to corner of berm
10           Well Frt of Berm behind 50135 Lex. W (4) rotors at base of berm behind 50135 Lex. W to corner of berm
11           Well Frt of Berm behind 50167 Lex. W (4) rotors at base of berm by the well
12           Well Frt of Berm behind 50167 Lex. W (2) rotors at base of berm north of zone # 11
13           Well Back of Berm west of 6645 Lex. N (13) rotors on back of berm behind 50151 Lex. W to 6657 Lex. N
14           Well Back of Berm west of 50119 Lex. W (15) rotors on back of berm behind 50087 to 50135 Lex. W
15           Well Back of Berm west of 49959 Lex. W (16) rotors on back of berm behind 49895 to 50071 Lex. W
16           Meter* Frt of Berm behind 6731 Lex. N (7) rotors at base of berm behind 6679 to 6731 Lex. N
17           Meter* Frt of Berm behind 6785 Lex. N (5) rotors at base of berm behind 6785 to 6829 Lex. N


  * inside beige box at NW corner of Lex. North and Regent; these zones must be coordinated with those on Controller #8


  Days to Water
  Monday (1)
  Tuesday (2)
  Wednesday (3)
  Thursday (4)
  Friday (5)
  Saturday (6)
              Sunday (7)
